SALE DYNON D1 £1140.00

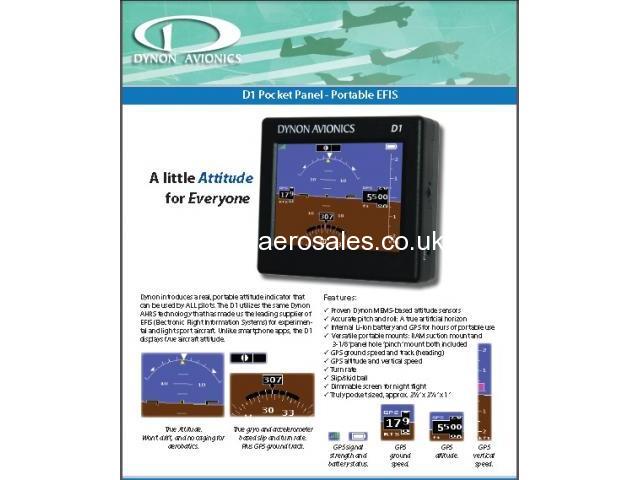

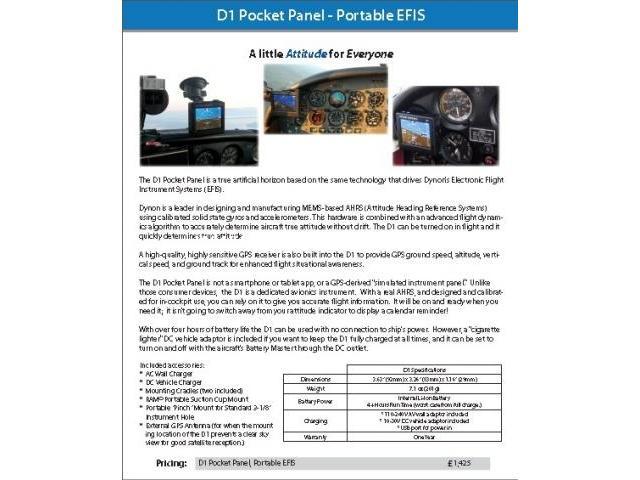

The D1 Pocket Panel is a true artificial horizon based on the same technology that drives Dynon’s Electronic Flight Instrument Systems (EFIS).
Dynon is a leader in designing and manufacturing MEMS-based AHRS (Attitude Heading Reference Systems) using calibrated solid state gyros and accelerometers. This hardware is combined with an advanced flight dynamics algorithm to accurately determine aircraft true attitude without drift. The D1 can be turned on in flight and it quickly determines true attitude.
A high-quality, highly sensitive GPS receiver is also built into the D1 to provide GPS ground speed, altitude, vertical speed, and ground track for enhanced flight situational awareness.

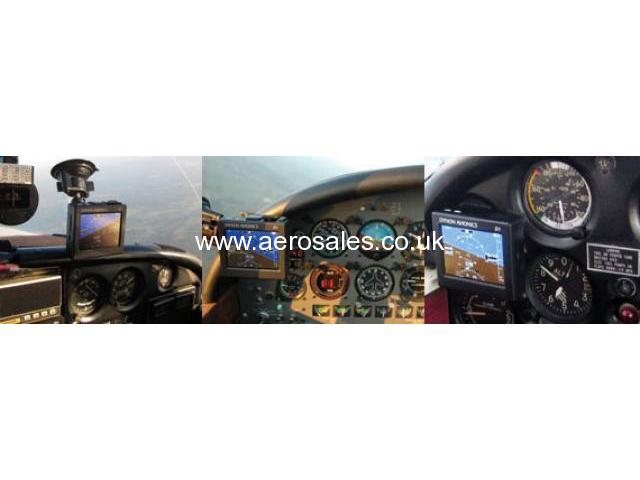

The D1 Pocket Panel is not a smartphone or tablet app, or a GPS-derived “simulated instrument panel.” Unlike those consumer devices, the D1 is a dedicated avionics instrument. With a real AHRS, and designed and calibrated for in-cockpit use, you can rely on it to give you accurate flight information. It will be on and ready when you
need it; it isn’t going to switch away from your attitude indicator to display a calendar reminder!
With over four hours of battery life the D1 can be used with no connection to ship’s power. However, a “cigarette lighter” DC vehicle adaptor is included if you want to keep the D1 fully charged at all times, and it can be set to turn on and off with the aircraft’s Battery Master through the DC outlet.
True EFIS Attitude in a Portable Package
Proven Dynon MEMS-based attitude sensors
Accurate pitch and roll: A true artificial horizon
D1 Ball
D1 Attitude

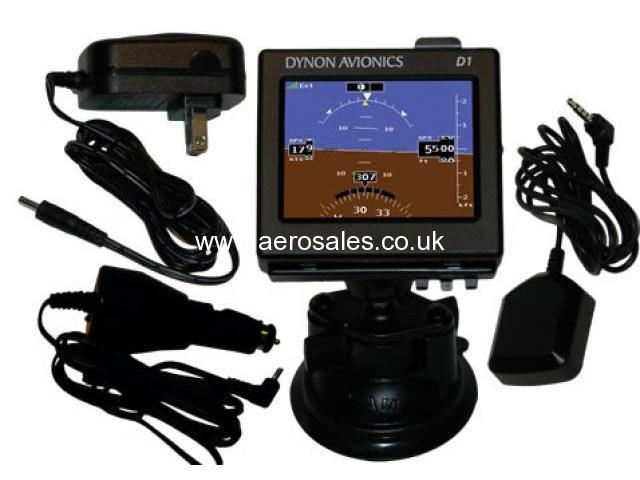

Portable Mounting Options Included,
Suction Cup or Clip Mount
No installation costs!
Versatile portable mounts: RAM suction mount
and 3-1/8” panel hole “pinch” mount both included
Internal Li-Ion battery for hours of portable use
DC and AC power adaptors included
Truly pocket sized, approx. 3½” x 3¼” x 1”
D1 Ground Track
True Attitude plus GPS Flight Data
GPS ground speed and track (heading)
GPS altitude and vertical speed
Turn rate
Slip/skid ball
Dimmable screen for night flight
D1 GPS Data
Intended Use
The D1 Pocket Panel is a portable device that aids situational awareness. The D1 does not have TSO authorization from the FAA or other regulatory body, and is not suitable for permanent installation in type certificated aircraft.
The D1’s Ground Speed, Altitude, Vertical Speed, and Ground Track (direction) instruments are GPS-derived. Their indications WILL BE DIFFERENT from the airspeed, altimeter, VSI, and heading instruments in your aircraft panel. The D1’s GPS-based indications should not be considered replacements for any of these primary aircraft instruments.
